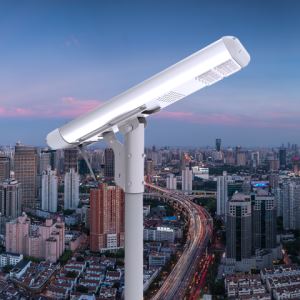

High efficiency auto sweep wireless solar pole light, combined with intelligent control system, and perfect automatic cleaning system, convenient management at the same time to save the subsequent cleaning of labor costs, but also to avoid the possibility of personnel injury caused by cleaning of solar panels.
PRODUCT PARAMETERS:
Remotely control Integrated/All In One Solar Pole Light/Auto Sweep Wireless Solar Pole Light | ||||
SPEC | H5 (HP-3000) | H6 (HP-3000) | H8 (HP-3000) | |
Solar Panel | LED Module | 2 modules | 3 modules | 4 modules |
Life Time | 25 Years(the power attenuation of each year is around 1%) | |||
Battery | capacity | 1000WH | 1250WH | 1500WH |
Life Time | 5-8 Years | |||
Led Source | Max Power | 45W | 68W | 82W |
(12V) | ||||
With IP65 | Max Lumen | 10000LM | 15000LM | 18000LM |
(LM) | ||||
LED Chip | 5050 LED | |||
Viewing | 70°*140° | |||
Angle | ||||
Life Time | 100000 Hours | |||
Charge Time | By Sun | 6Hrs | 6Hrs | 8Hrs |
Discharge Time | Full | >10Hrs | >12Hrs | >15Hrs |
Power | ||||
Saving | >20Hrs | >25 Hrs | >30Hrs | |
Power | ||||
Working Temp | Range( ºC ) | -15ºC~+70ºC | ||
Color Temp | Range(k) | 3000k-6500k | ||
Space Between | Range(m) | 15-20 | 20-25 | 25-30 |
Light | ||||
Main Material | Aluminium Alloy | |||
Certificate | CE/ROHS/IP65/ISO9001 | |||
Circuit protection | Overcharge, discharge, short circuit, open load, lighting protection and so on | |||
wireless network | Zigbee proprietary wireless network allows remote management and control of lights using internet or GSM, one DTU per 200 lights and all the DTU report to a central control room. | |||
Warranty Period | 3 Years | |||
PRODUCT FEATURE AND APPLICATIONS:
1. Simple design, elegant shape, suitable for any place.
2. Automatic cleaning system, regular cleaning of solar panels, to achieve maximum utilization.
3. Easy installation, screw assembly can be.
4. Three dimensional module design, different module number to meet various lighting needs.
5. High luminous efficiency LED beads, up to 200 Lumen/w. Energy saving and environmental protection
APPLICATIONS:
Simple and elegant shape for various occasions, stadiums, highways, communities, schools.
PRODUCT DETAILS:
1. Modular design, configurable to different demands
2. High efficiency LED chip : 5050 Philips etc, more than 190lm/ W
3. Dynamic picture:
PRODUCT QUALIFICATION:
CE, ROHS, ISO9001, IP65
DELIVER, SHIPPING AND SERVING:
We accept EXW, FOB, etc. You can choose the one which is the most convenient or cost effective for you.
We also provide 3 years warranty for your products and technical support.
FAQ:
1. How can I get the price?
You could contact with us directly to get the price
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
